Description

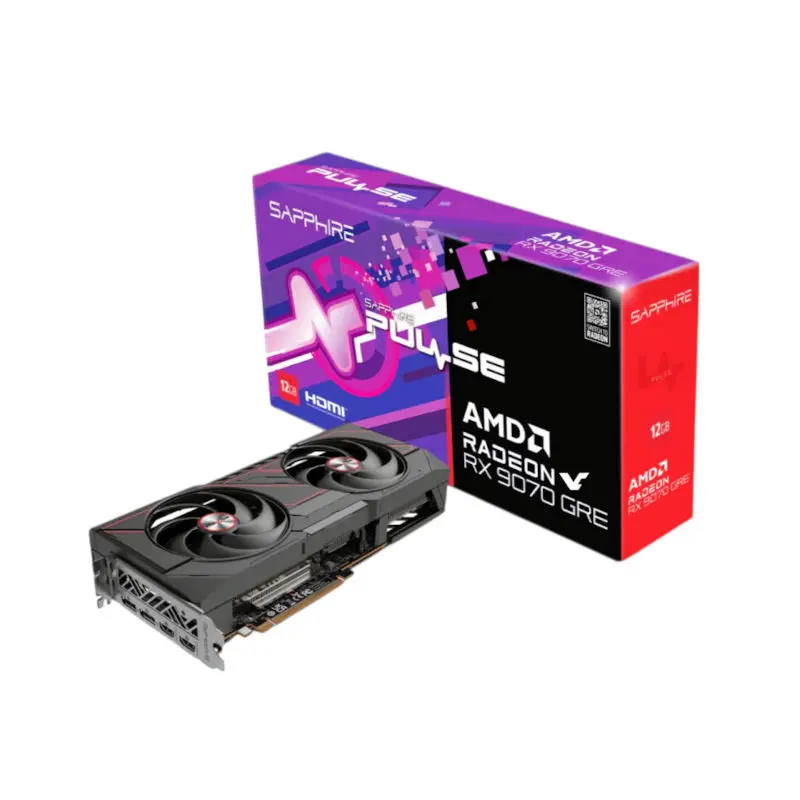

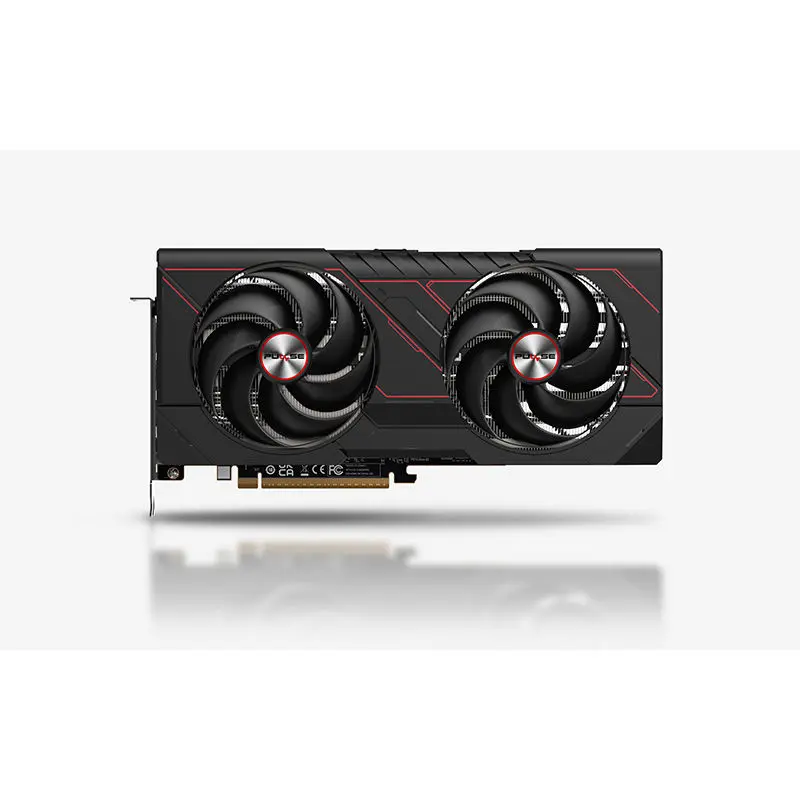

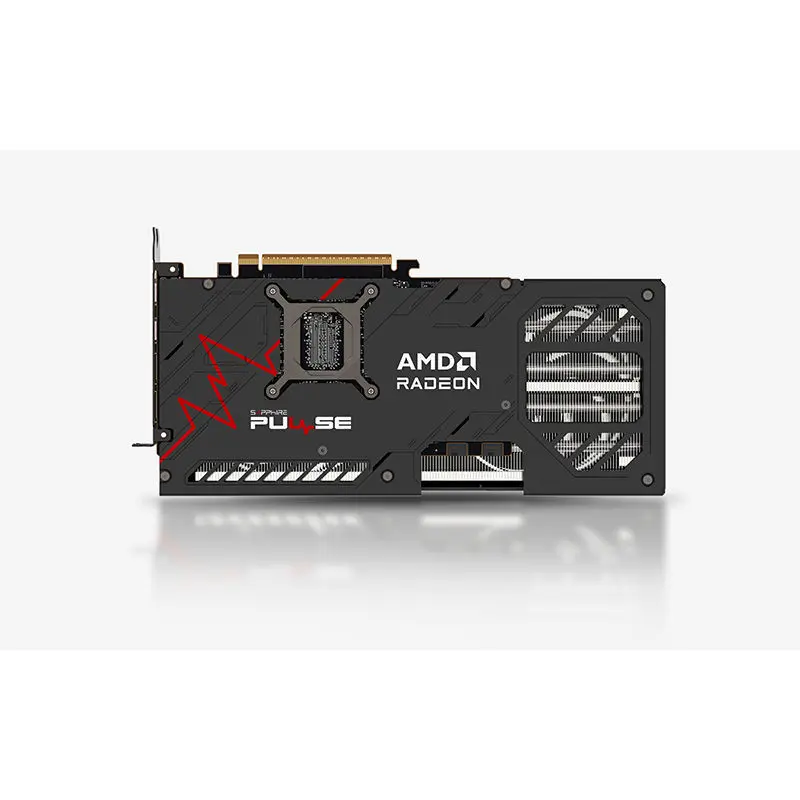

Sapphire Pulse AMD Radeon RX 9070 GRE OC 12GB GDDR6 Graphics Card
- GPU: Boost Clock: Up to 2920 MHz
- GPU: Game Clock: Up to 2340 MHz
- Memory: 12GB/192 bit DDR6. 18Gbps Effective
- Stream Processors: 3072
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 48
| Specification | |
| GPU | AMD Radeon™ RX 9070 GRE Graphics Card
AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2920 MHz
Game Clock: Up to 2340 MHz |
| Stream Processors | 3072 |
| Compute Units | 48 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 48MB |
| Ray Accelerators | 48 |
| AI Accelerator | 96 |
| Memory Size/Bus | 12GB/192 bit GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI® 2.1b: 7680×4320
DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2.1b
2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Two-Ball Bearing Fans 14-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost |
| AMD Features | AMD RDNA™ 4 Architecture
48 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 12 GB of GDDR6 on 192-bit Memory Bus AMD FSR™ “Redstone” AMD Software: Adrenalin Edition™ application |
| Cooler Type | Dual-X Cooling
AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 2.5 slot, ATX
Dimension: 280(L)X 120.25(W)X 51.5 (H)mm |
| Power Consumption | 240W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 650 Watt Power Supply
2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice |
