Description
NZXT Control Hub Digital RGB Lighting And Fan Speed Controller Black
The NZXT Control Hub streamlines fan and RGB lighting management. Connect and customize your setup for optimal performance and vibrant visuals through NZXT CAM software.
- Conveniently operate a full build of RGB Core Single-Frame Fans using the 8-pin PWM and RGB combo headers.
- Fine-tune speeds for up to five PWM fans (including single-frame fan units), with Zero RPM mode for silent operation during low loads.
- Synchronize lighting effects on up to five NZXT RGB components to create a cohesive, system-wide look.
- Adjust fan speeds, personalize lighting, and create custom profiles via NZXT CAM software, which automatically detects each connected device.

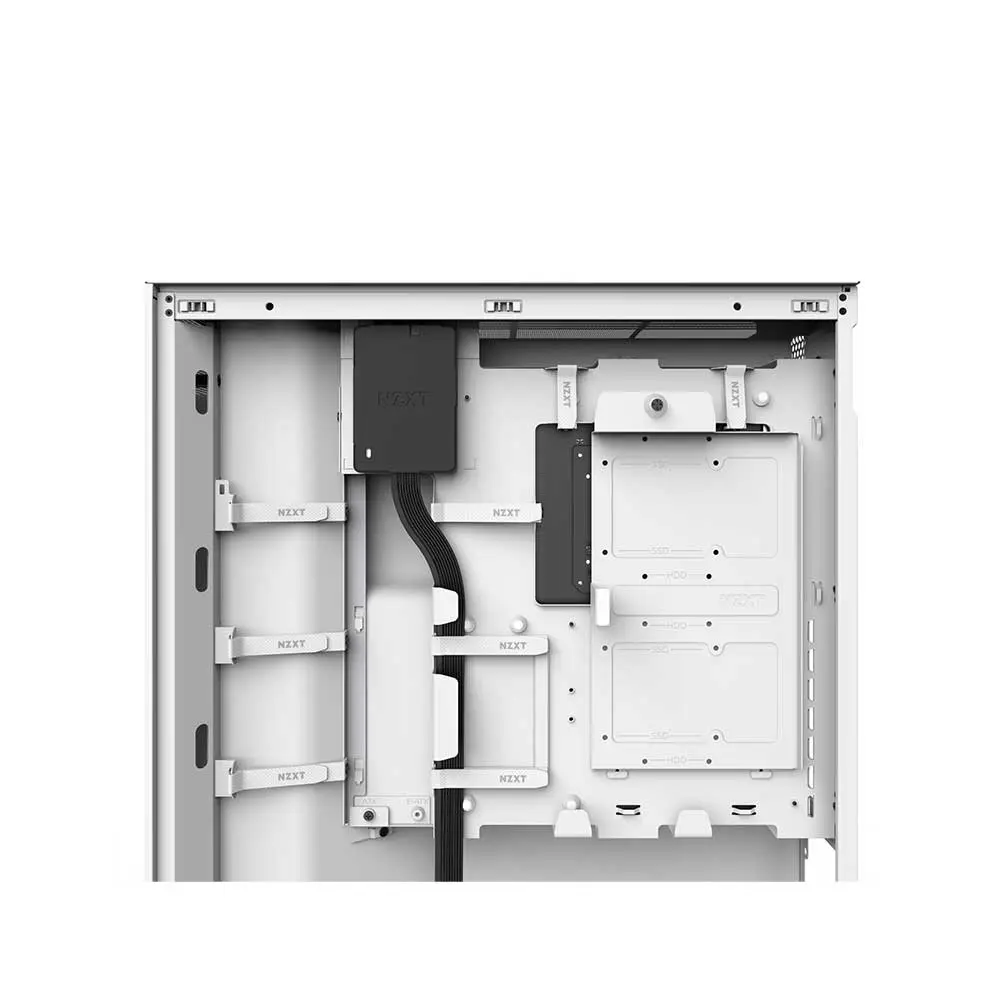

- Secure the controller magnetically or use the included 3M™ Dual Lock™ Reclosable Fasteners.
- The included splitter cables have both 4-pin PWM and 4-pin RGB connectors, ensuring it works with any type of NZXT fan.
| Dimensions | |
| Height | 15.9 mm / 0.63 in |
| Width | 70 mm / 2.76 in |
| Depth | 100 mm / 3.94 in |
| Weight | 150 g / 5.29 oz |
| Output Channels | |
| Fan | 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control) |
| RGB | 4 x NZXT 8-pin / 1 x NZXT RGB |
| Max LED Support | Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices. |
| Installation | |
| Mounting Options | Magnetic housing, 3M™ Dual Lock™ Reclosable Fasteners, or 2.5″ SSD mounting screws |
| PSU Connector | 8-pin PCIe Power |
| Motherboard Connector | Internal USB 2.0 |
| System Requirements | |
| Internal Header | USB 2.0 |
| Operating System | Windows® 10/11 |
| Software | NZXT CAM |
| Inside The Box | NZXT Control Hub – 1
NZXT 8-pin splitter – 1 NZXT RGB splitter (1 to 3 split) – 1 4-pin PWM fan splitter (1 to 3 split) – 1 3M™ Dual Lock™ – 2 |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
