Description
MSI RTX 5060 Gaming OC 8GB GDDR7 Graphics Card
Fearless and bold, MSI RTX 5060 Gaming OC delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GAMING is the ideal choice for gamers who strive to give their all.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2640 MHz (MSI Center)

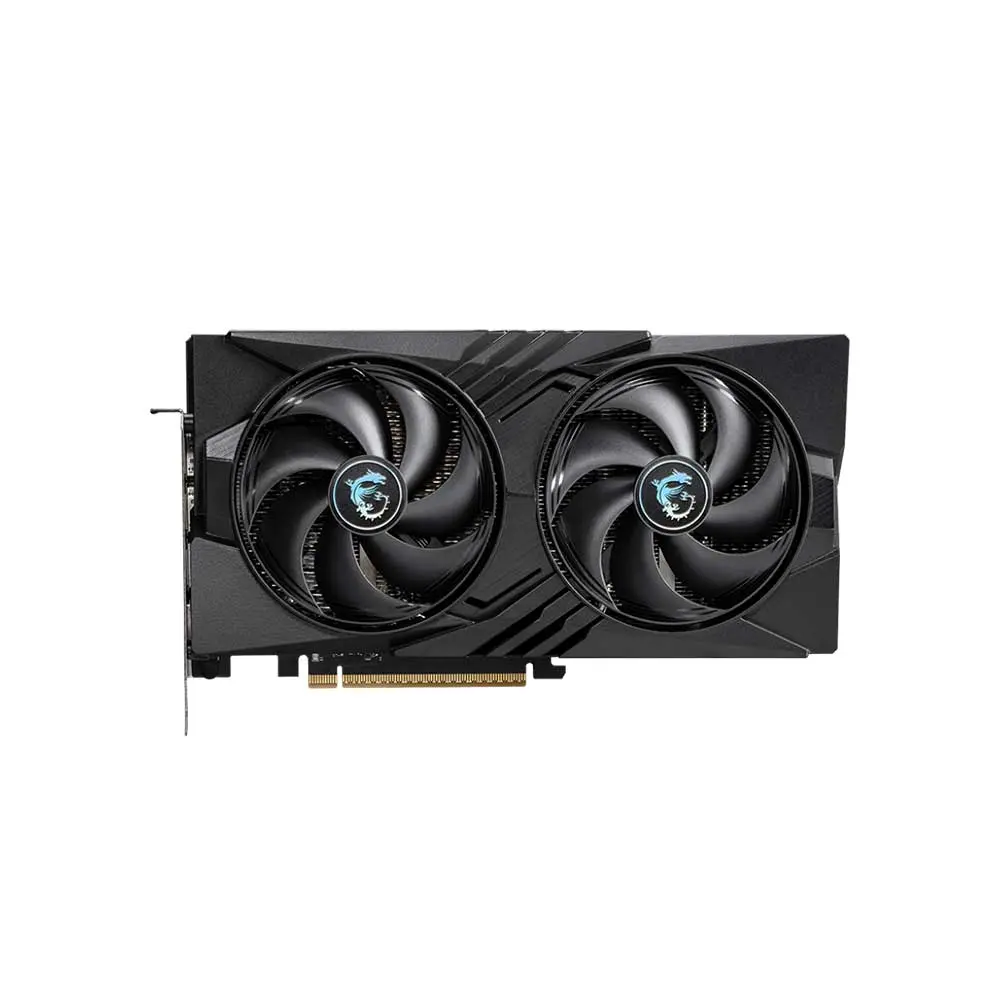

Boost: 2625 MHz - TWIN FROZR 10: Experience superior cooling and quieter performance with MSI’s enhanced fan blade design.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

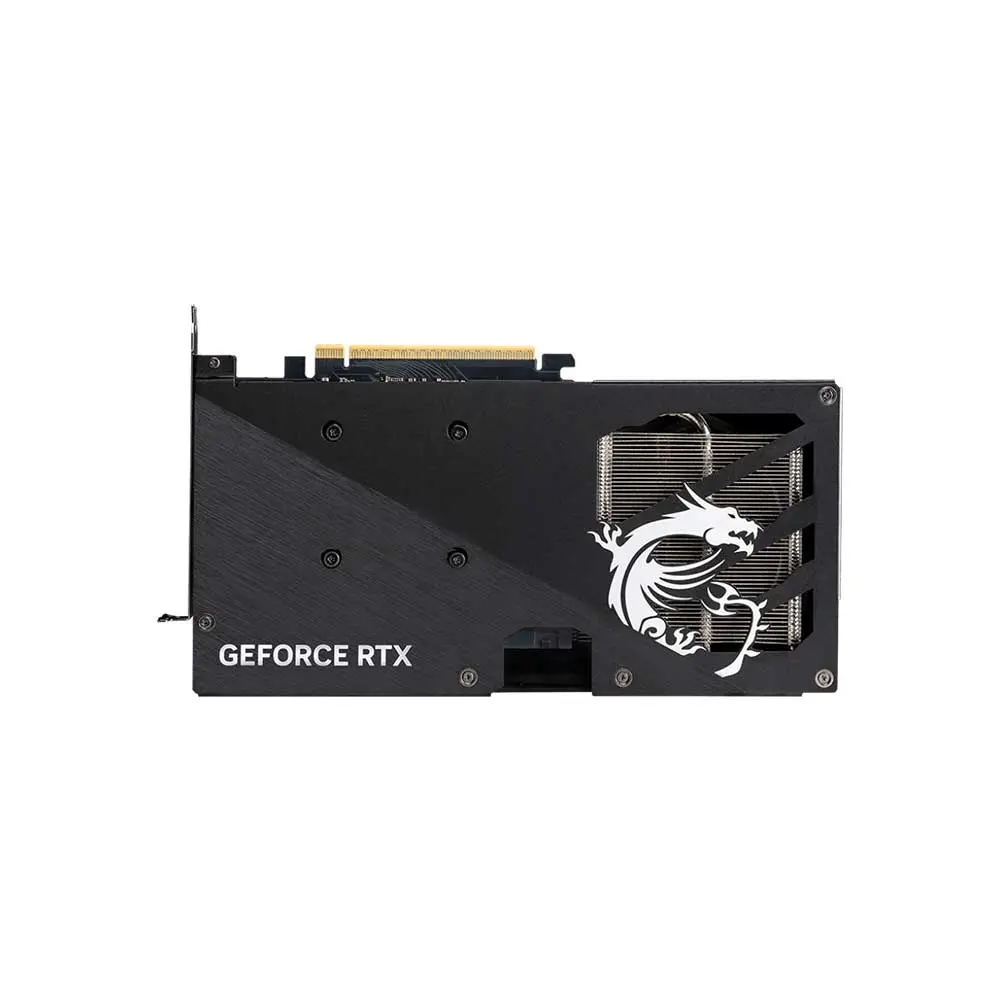

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name | GeForce RTX™ 5060 8G GAMING OC |
| Model Name | G5060-8GC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
| Interface | PCI Express® Gen 5 x16 pin(uses x8) |
| Core Clocks | Extreme Performance: 2640 MHz (MSI Center) Boost: 2625 MHz |
| Cuda Cores | 3840 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128 Bit |

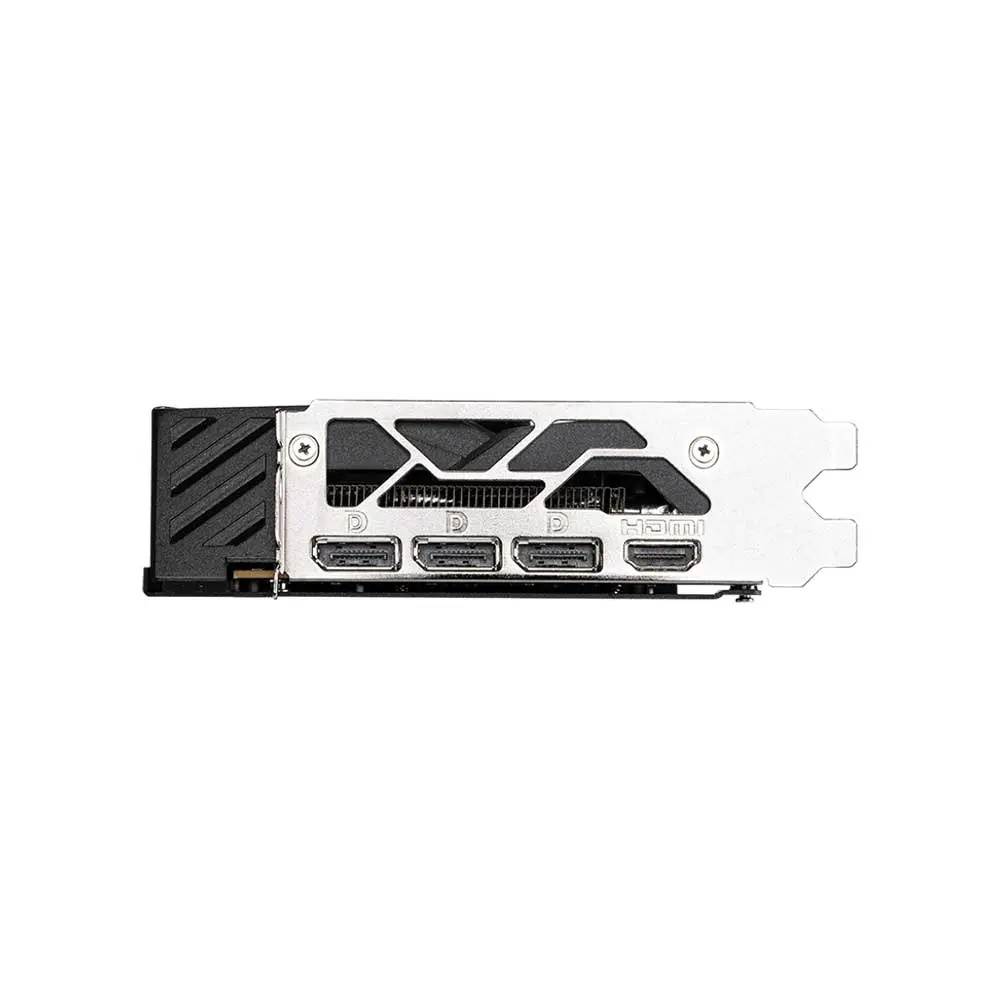

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 155 W |
| Power Connectors | 8-pin x 1 |
| Recommended PSU | 550W |
| Card Dimension (mm) | 248 x 135 x 41 mm |
| Weight (Card/Package) | 649 g / 966 g |
| Direct X Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680×4320 |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
