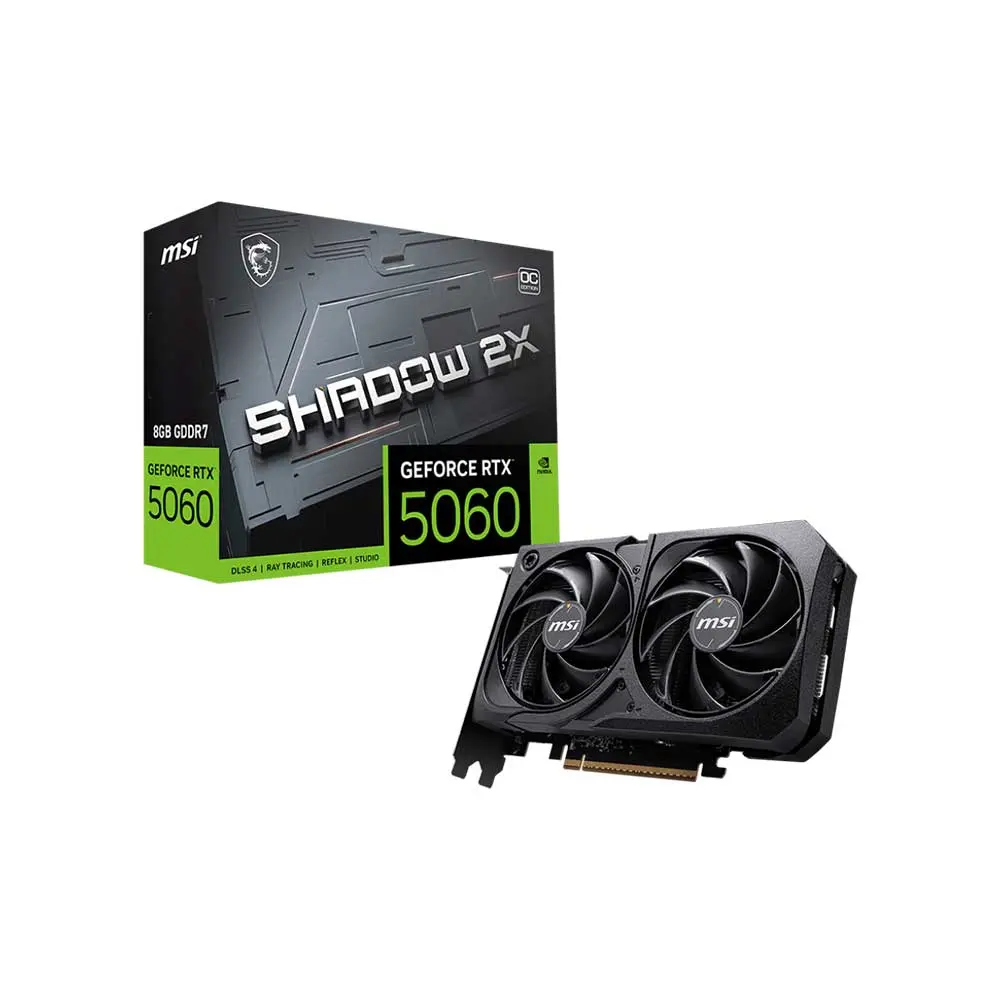

MSI RTX 5060 8G Shadow 2X OC 8GB GDDR7 Graphics Card
MSI RTX 5060 8G Shadow 2X OC brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2535 MHz (MSI Center)

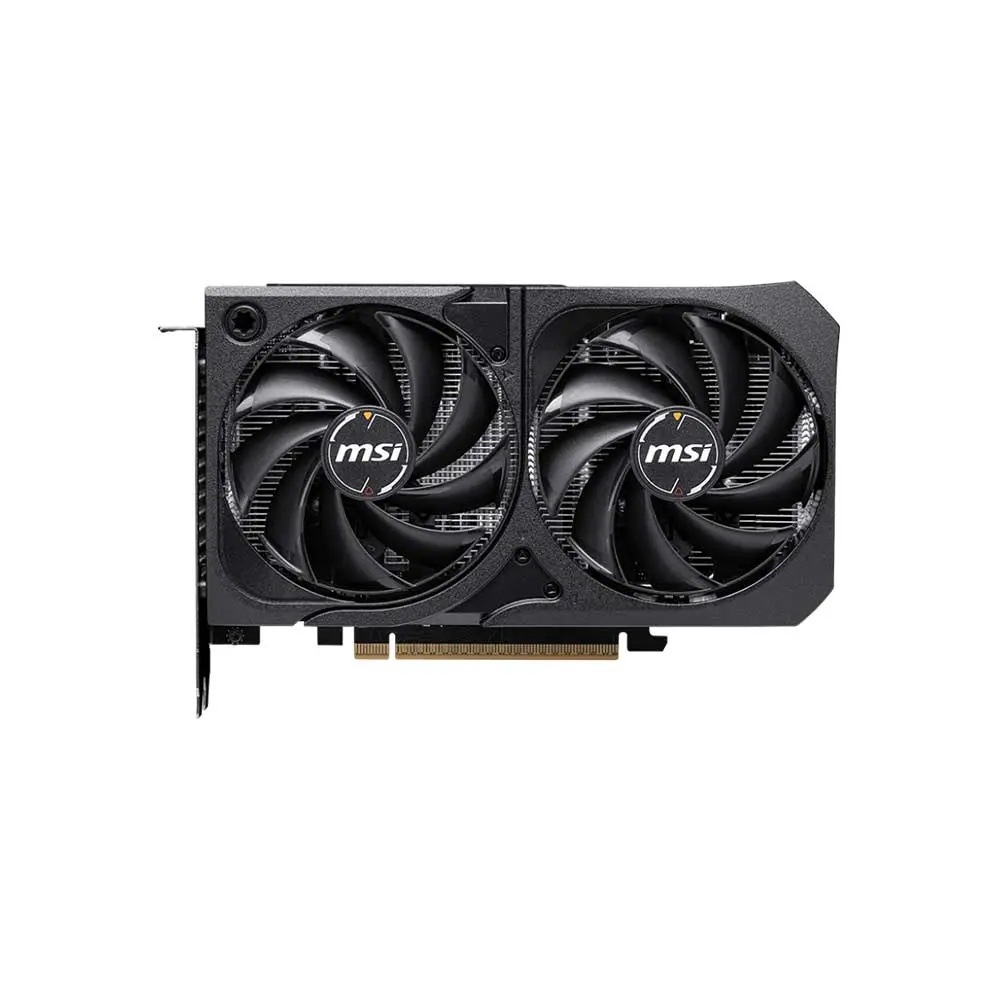

Boost: 2527 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

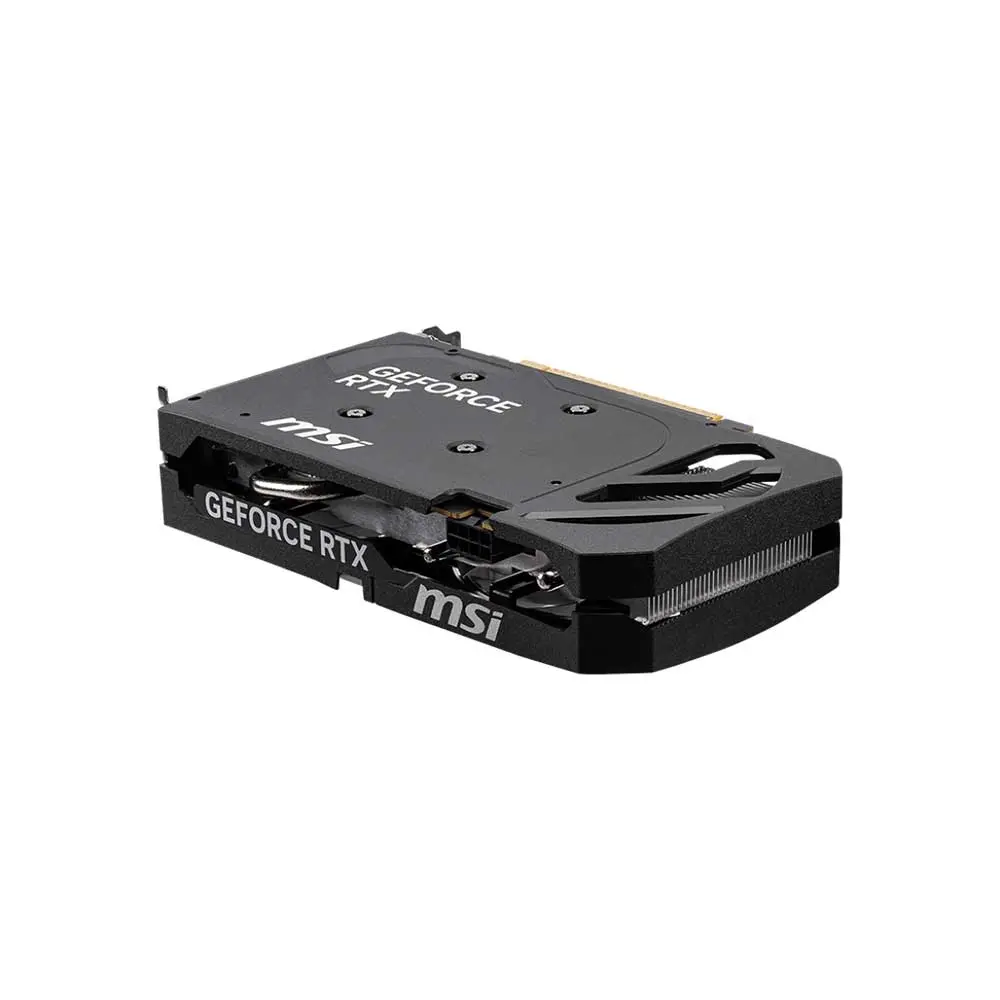

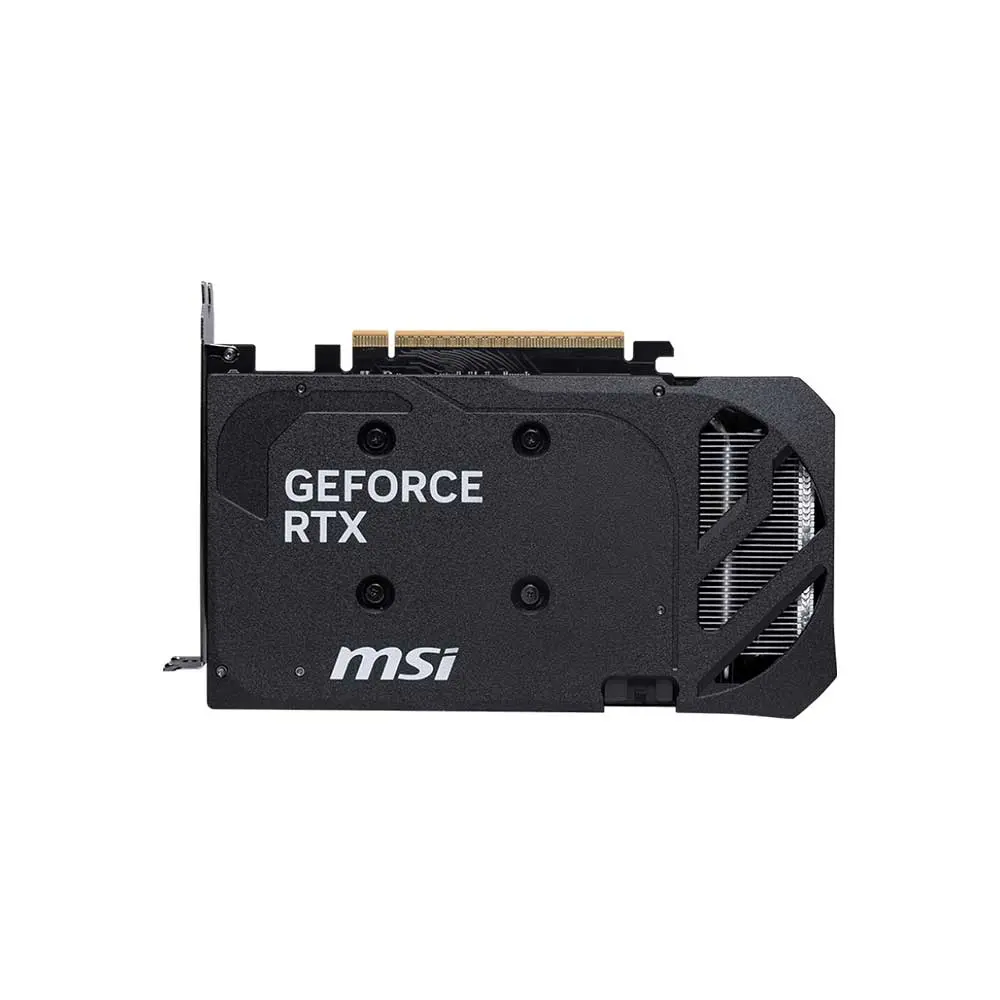

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name | GeForce RTX™ 5060 8G SHADOW 2X OC |
| Model Name | G5060-8S2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2535 MHz (MSI Center) Boost: 2527 MHz |
| Cuda Cores | 3840 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128 Bit |

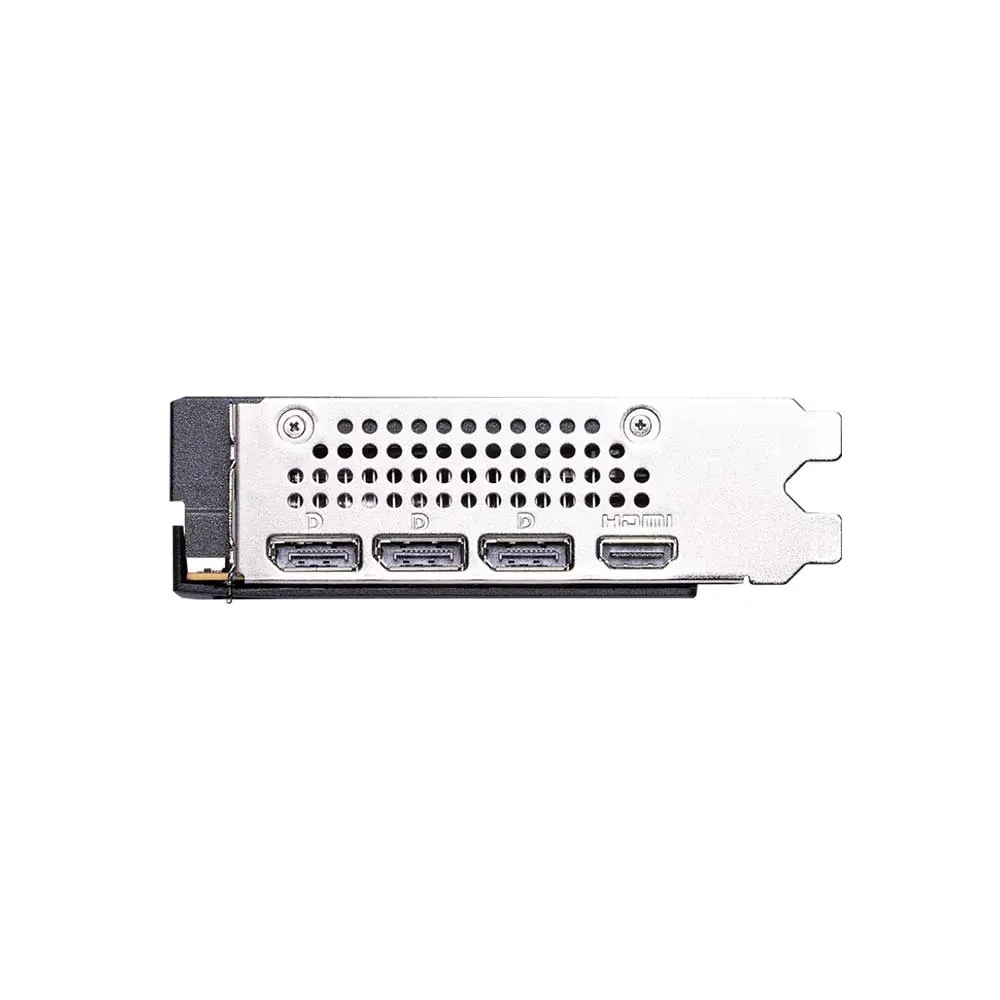

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 145 W |
| Power Connectors | 8-pin x 1 |
| Recommended PSU | 550W |
| Card Dimension (mm) | 197 x 120 x 40 mm |
| Weight (Card/Package) | 493 g / 814 g |
| Direct X Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680×4320 |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
