Description

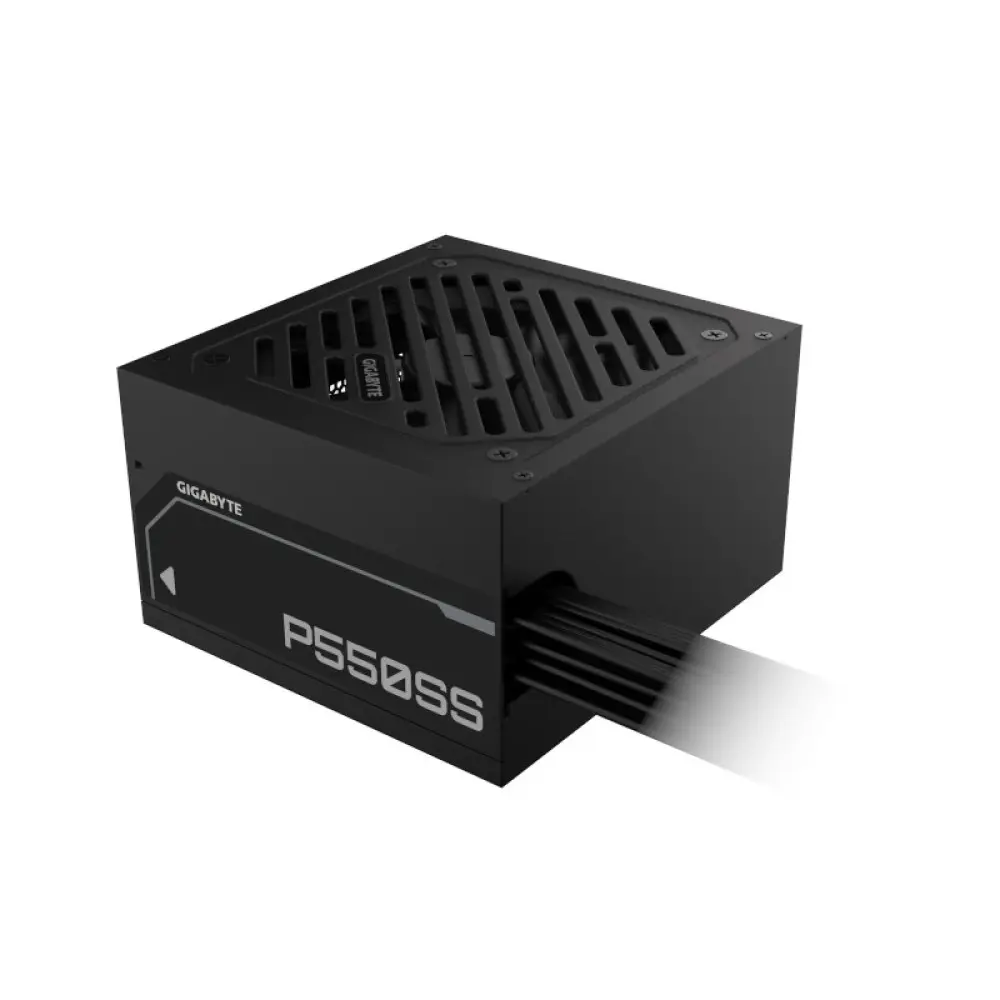

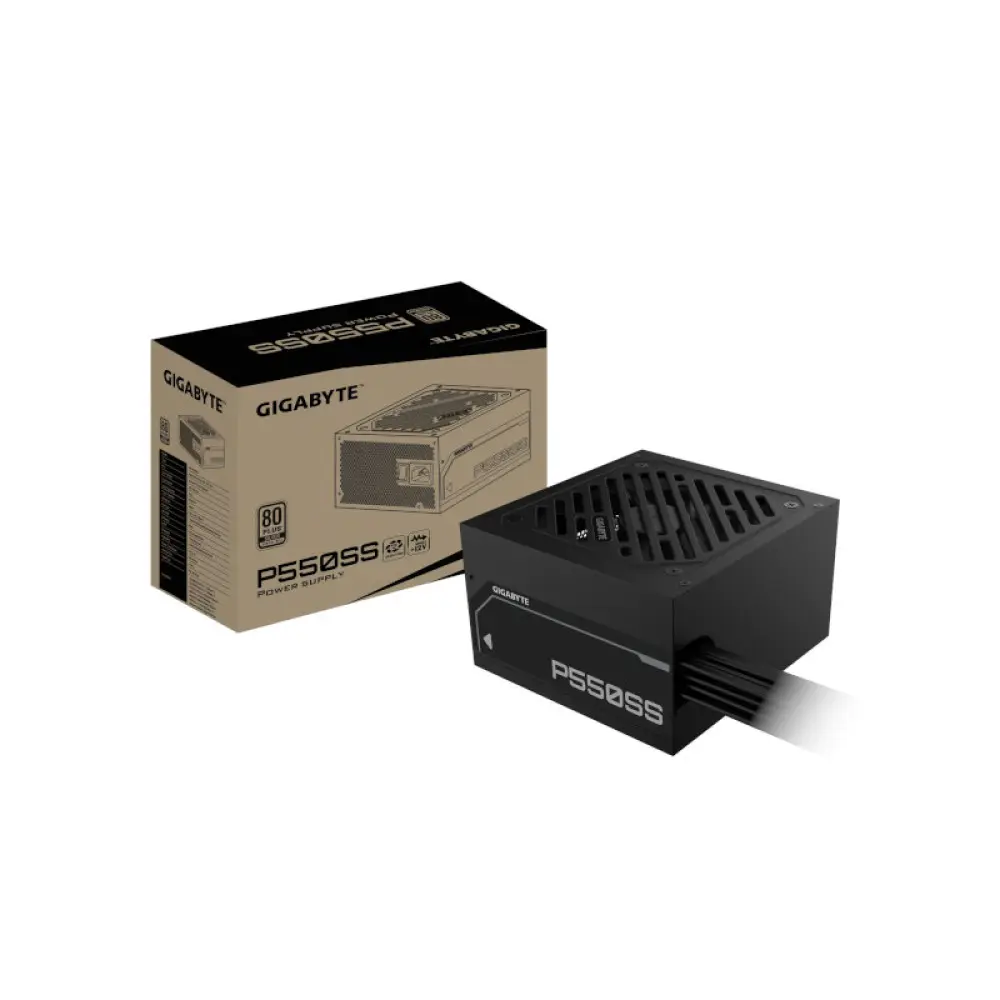

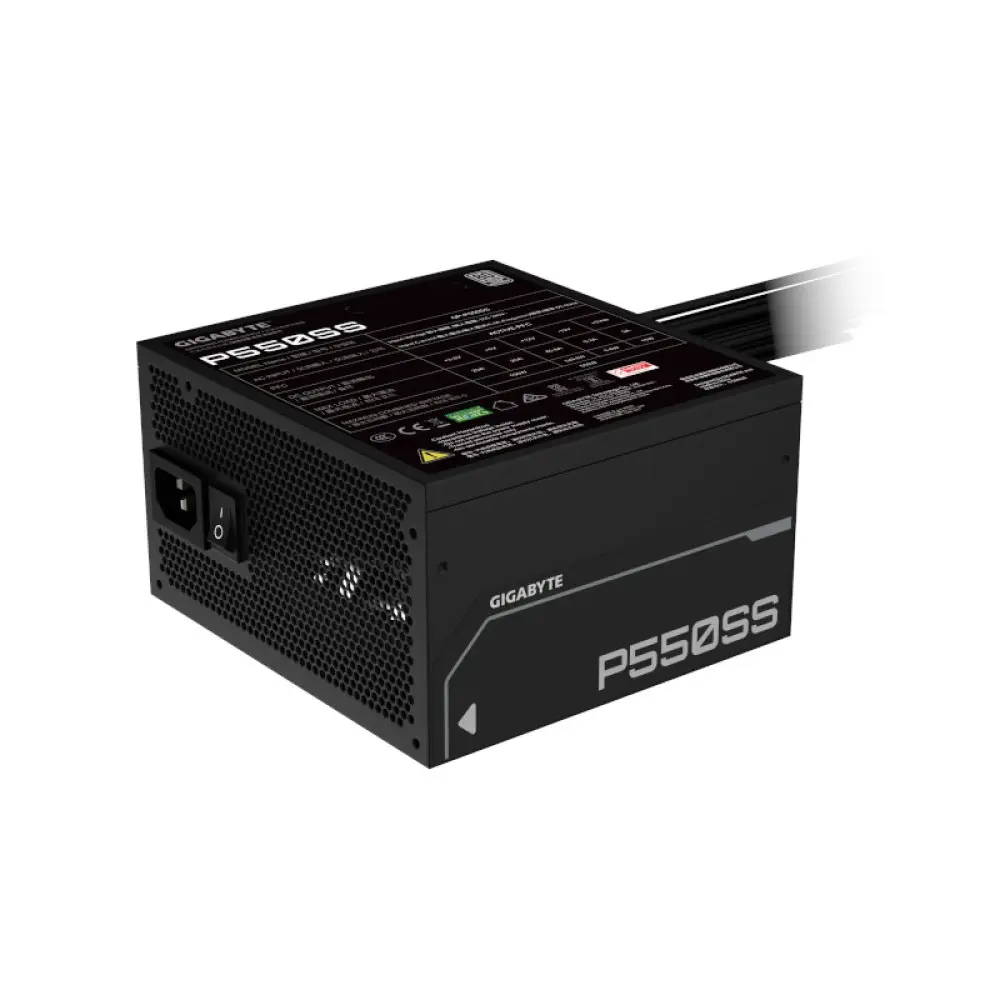

Gigabyte P550SS 550 Watt 80 Plus Silver Power Supply
- 80 PLUS Silver certified (230V EU)
- Support Intel ATX 3.0 standard (compatible with ATX 3.1)
- 120mm Fluid Dynamic Bearing (FDB) Fan
- Flat cable design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
| Specification | |
| Model | GP-P550SS |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 155-240 Vac |
| Input Current | 6.3A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 550W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) fan |
| 80 PLUS | Silver |
| Efficiency | 90% at typical load (230V EU) |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 1 : 650mm*1 PCI-e 6+2 Pin x 2 : 600mm+120mm*1 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. |
