Description

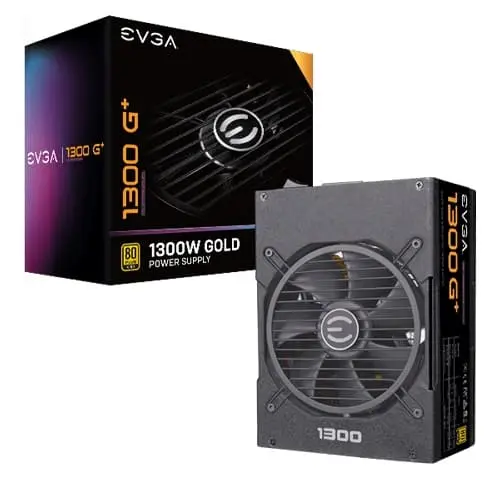

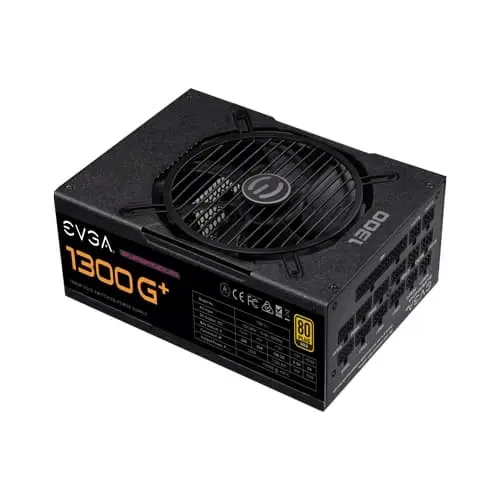

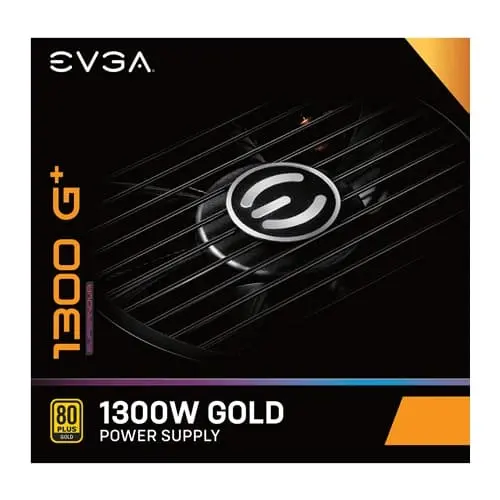

EVGA SuperNova 1300 G+ 1300 Watt 80+ Gold Fully Modular Power Supply
Features:
EVGA SuperNOVA 1300 G+, 80+ GOLD 1300W, Fully Modular, 10 Year Warranty, Includes FREE Power On Self Tester, Power Supply 220-GP-1300-X1
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- DC-DC Converter improves 3.3V/5V stability
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- 135mm Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
Specification
| Cable Lengths | ATX Cable: 1x 600mm
EPS Cable: 2x 750mm PCIe Cable: 4x 750mm, 2x 750mm, 900mm SATA Cable: 4x 550mm, 650mm, 750mm Four-Pin Peripheral Cable; 2x 550mm, 650mm, 750mm Floppy Adapter: 1x 100mm AC Power: 1x 1800mm |
| Modular Cable Type Molex to FDD |
Full 1x |
| Connector Quantity | 24 Pin ATX: 1x EPS (CPU): 2x 8pin (4+4) PCIe: 8x 8pin (6+2) SATA: 12x Four-Pin Peripheral: 6x Floppy: 1x |
| OperatingTemperature Japanese Capacitors ECO Mode MTBF Net Weight Size |
0° to 50° C 100% Yes 100,000 Hours 8.20 lbs 86mm (H) x 150mm (W) x 200mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing AC Input Wattage |
135mm Fluid Dynamic Bearing 100-240V~, 15-8A, 60/50 Hz 1300W |
| Warranty | 10 Year limited warranty with registration. |
| Note*** | *** Features, Price, Specifications are subject to change without notice. Images use for Representation Purpose Only. |
