DeepCool Gamer Storm PN1000M 80 Plus Gold ATX 3.1 Fully Modular Power Supply
Features:
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1000M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1000M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2×6 cable, the PN1000M provides up to 600W for modern GPUs.
SLEEVED CABLES
The PN1000M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

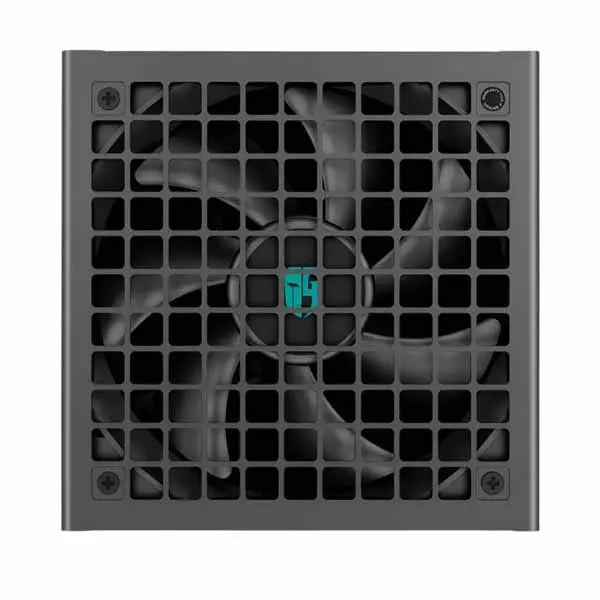

DYNAMIC FDB FAN
The PN1000M comes equipped with a dynamic 135mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN1000M will operate at altitudes up to 5000 meters above sea level.
IT WILL FIT!
Fitment into the vast majority of cases should not be an issue, as the PN1000M comes in at a compact 150x150x86mm size
PEACE OF MIND
The PN1000M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
| Model No | R-PNA00M-FC0B-JGIN |
| Cables | Main Power Connector (20+4)Pin x 1 – 1PCS
CPU(4+4)Pin x 1 – 2PCS PCI-E(6+2)Pin x 1 – 3PCS 12V-2×6(16Pin) x 1 – 1PCS SATA x 4 + 4Pin Peripheral x 1 – 2PCS |
| Product Dimensions | 150×150×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
