Description

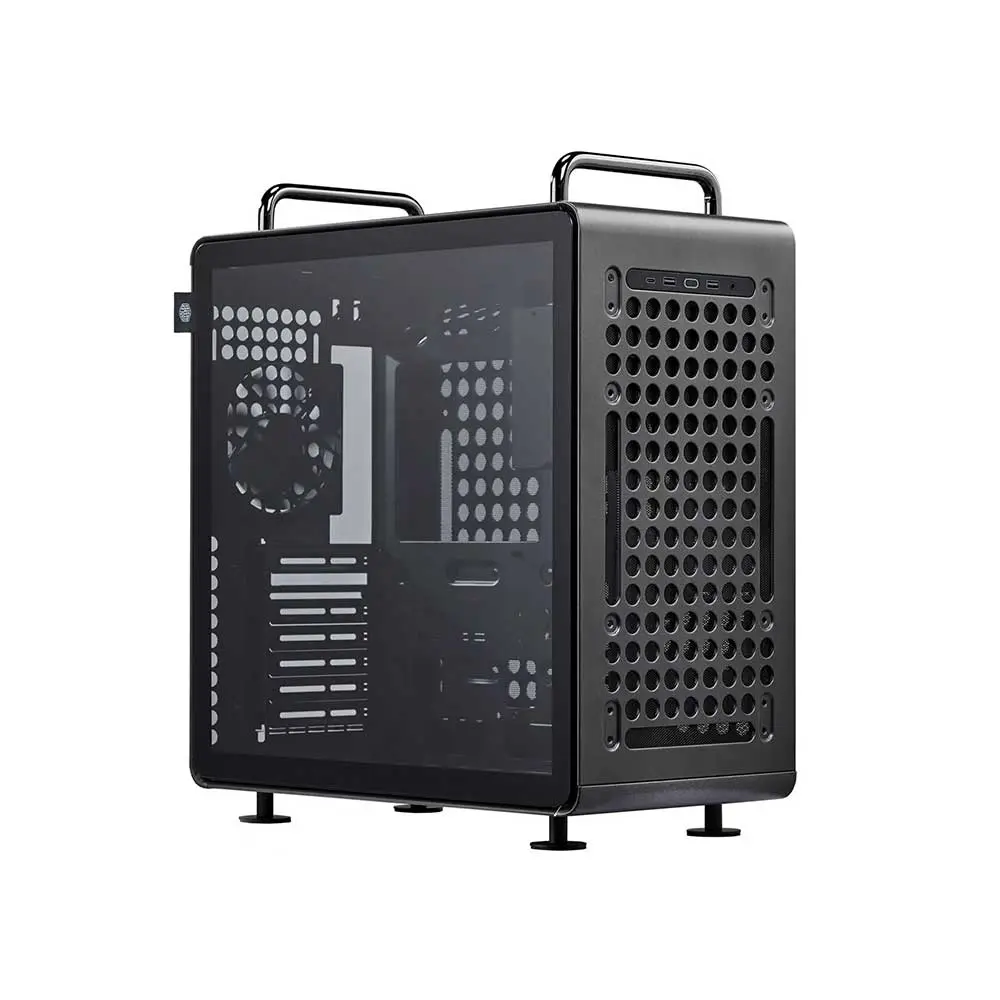

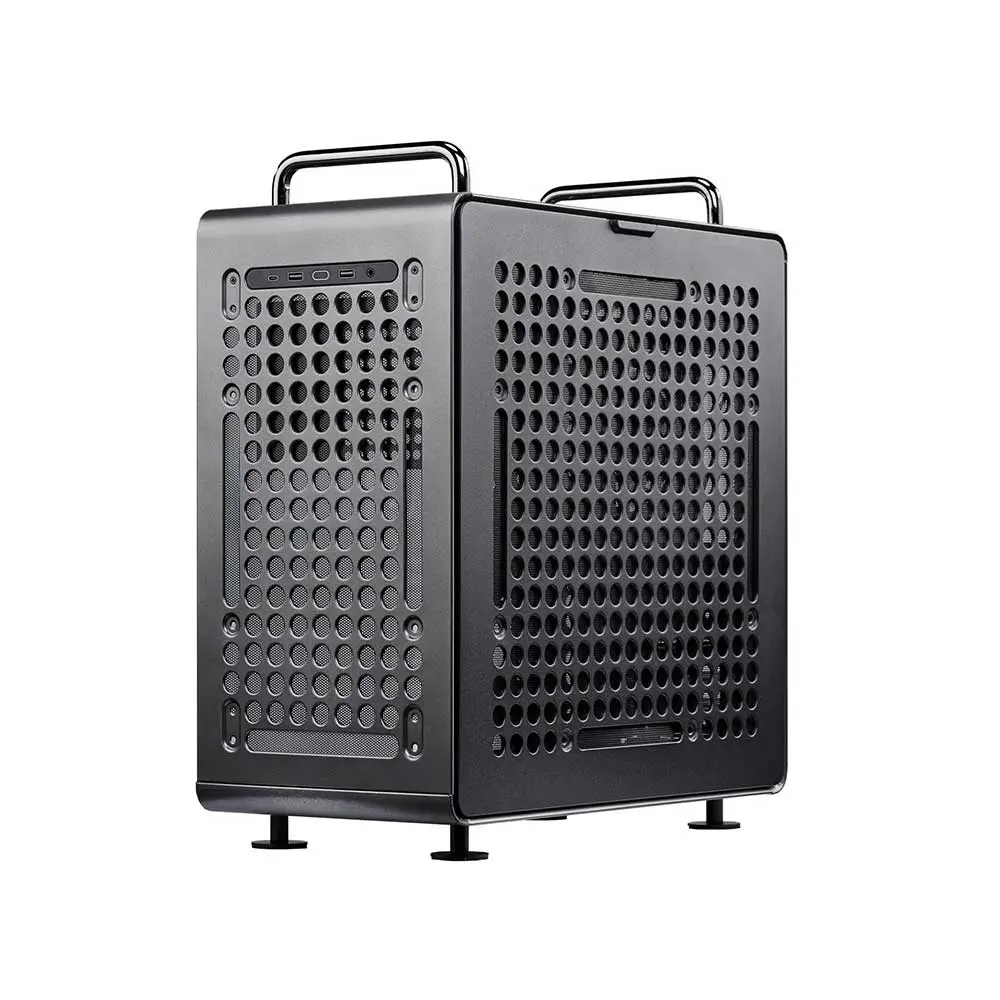

Cooler Master Qube 540 EATX Mid Tower Cabinet Stardust Iron
Perfect for small apartments, dorm rooms, and creators on the move, the QUBE 540 fits your life as well as your PC.
| Product Name | QUBE 540 |
| Model Number | Q540-MGNN-S00 |
| Color(s) | Stardust Iron |
| Materials – Exterior | Steel |
| Material – Side Panel (Right) | Steel |
| Material – Side Panel (Left) | TG |
| Dimensions (L x W x H) | Incl. Protrusions: 438.5 x 225 x 492.1 mm |
| Dimensions (L x W x H) | Excl. Protrusions: 425 x 225 x 425 mm |
| Volume (w/o protrusions) | 40.64 L |
| Volume (with panel, protrusions and feet) | 48.55 L |
| Motherboard Support | ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm) |
| Expansion Slot | 7 |
| Drive Bays – 5.25″ ODD | N/A |
| Drive Bays – 3.5″ HDD | 1 (Shared 3.5″ and 2.5″ mounting on PSU bracket) |
| Drive Bays – 2.5″ SSD | 2 (Max. 5) |
| I/O Panel – USB Ports | 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel – Audio In / Out | 1 x 3.5 Mic / Audio Combo Jack |
| Fan Support – Front | 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support – Top | 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support – Rear | 1x 120mm |
| Fan Support – Bottom | 3 x 120 mm / 2 x 140 mm |
| Preinstalled Fan(s) – Front | N/A |
| Preinstalled Fan(s) – Top | N/A |
| Pre-installed Fans – Rear | 1x 120mm Black Fan |
| Radiator Support – Front | 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support – Top | 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Bottom | 140 / 280 / 360mm (w/o I/O panel) |
| Clearances – CPU Coole | 172mm |
| Clearances – Power Supply | 200mm |
| Clearances – Graphics Card | 415 mm (w/o Front Fan) |
| Cable Routing – Behind Motherboard Tray | 27mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX / SFX |
| Series | QUBE Series |
| Size | Mid Tower |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
