Description

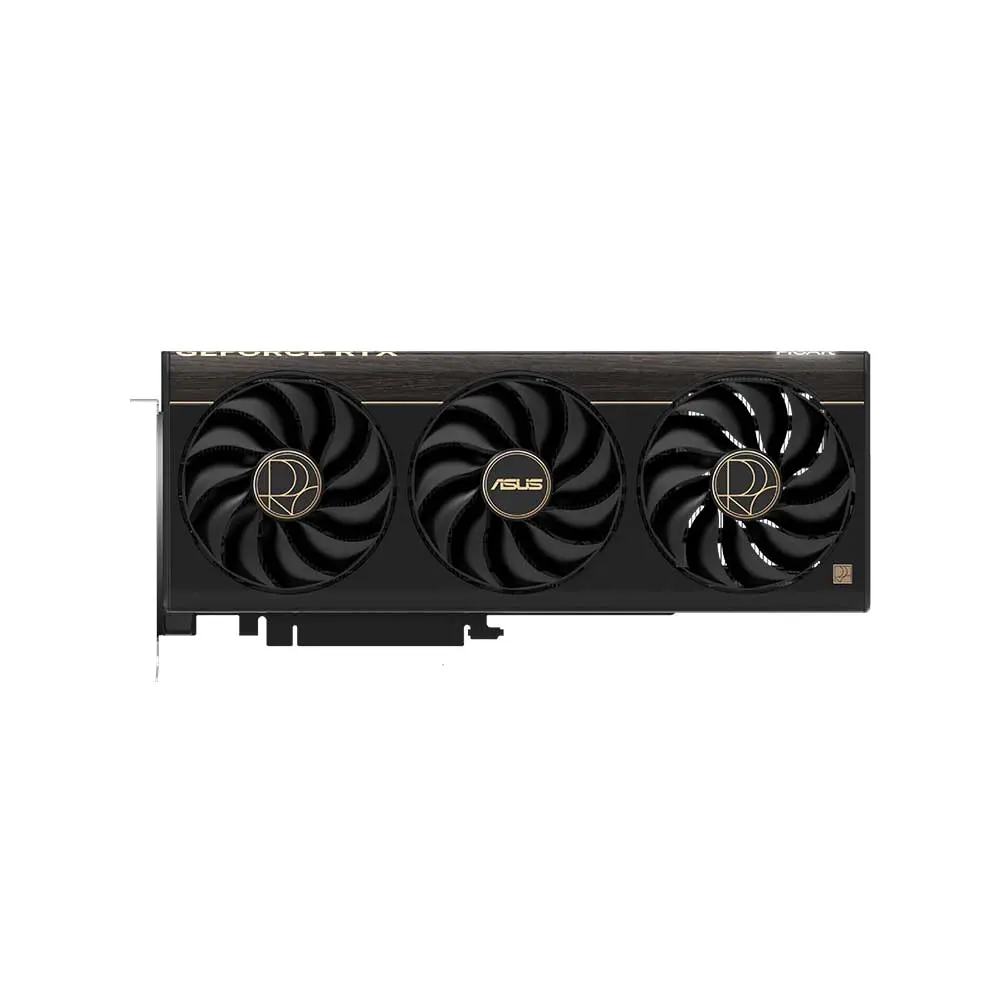

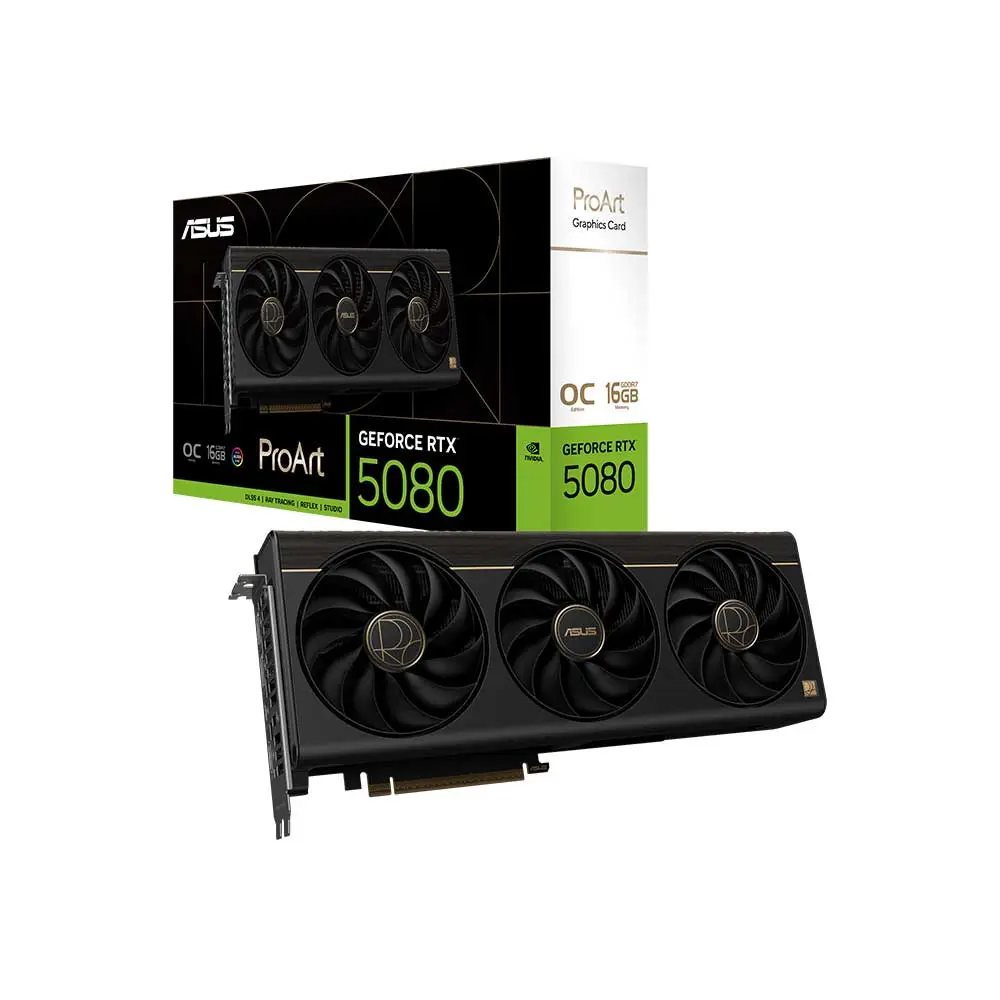

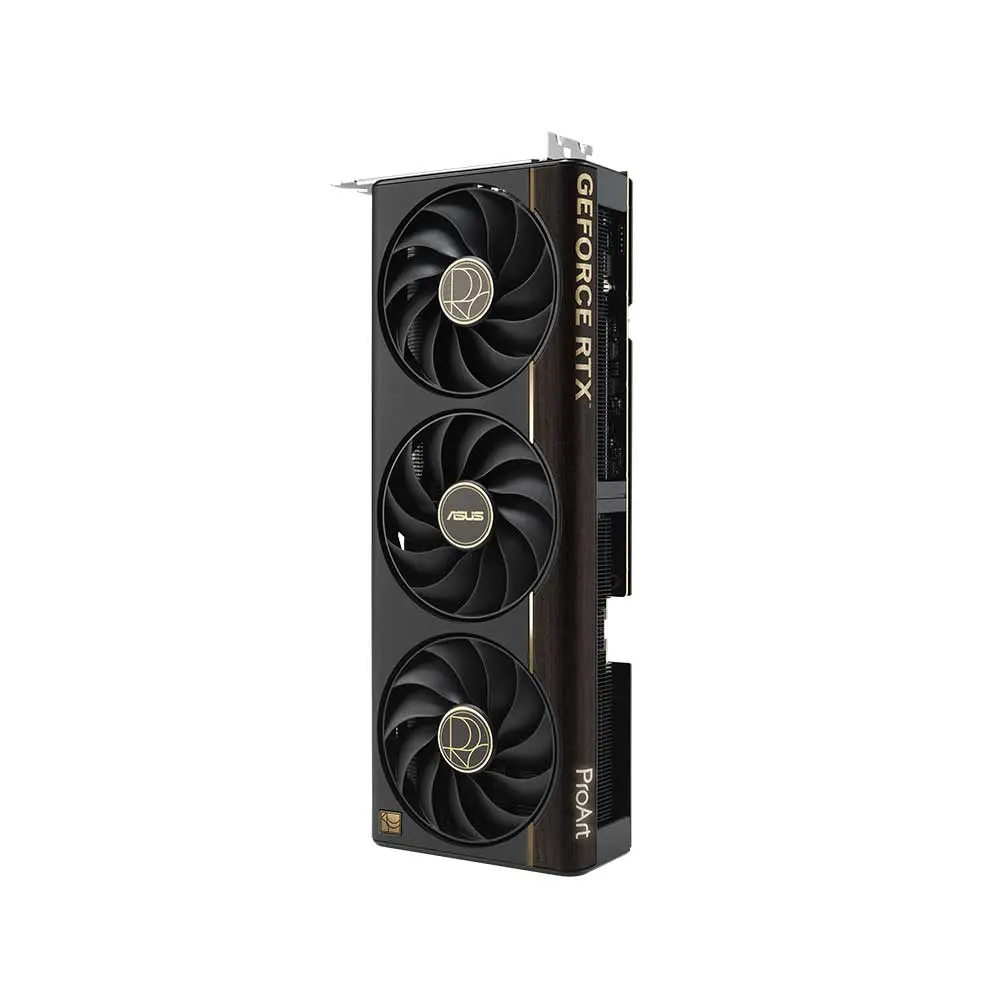

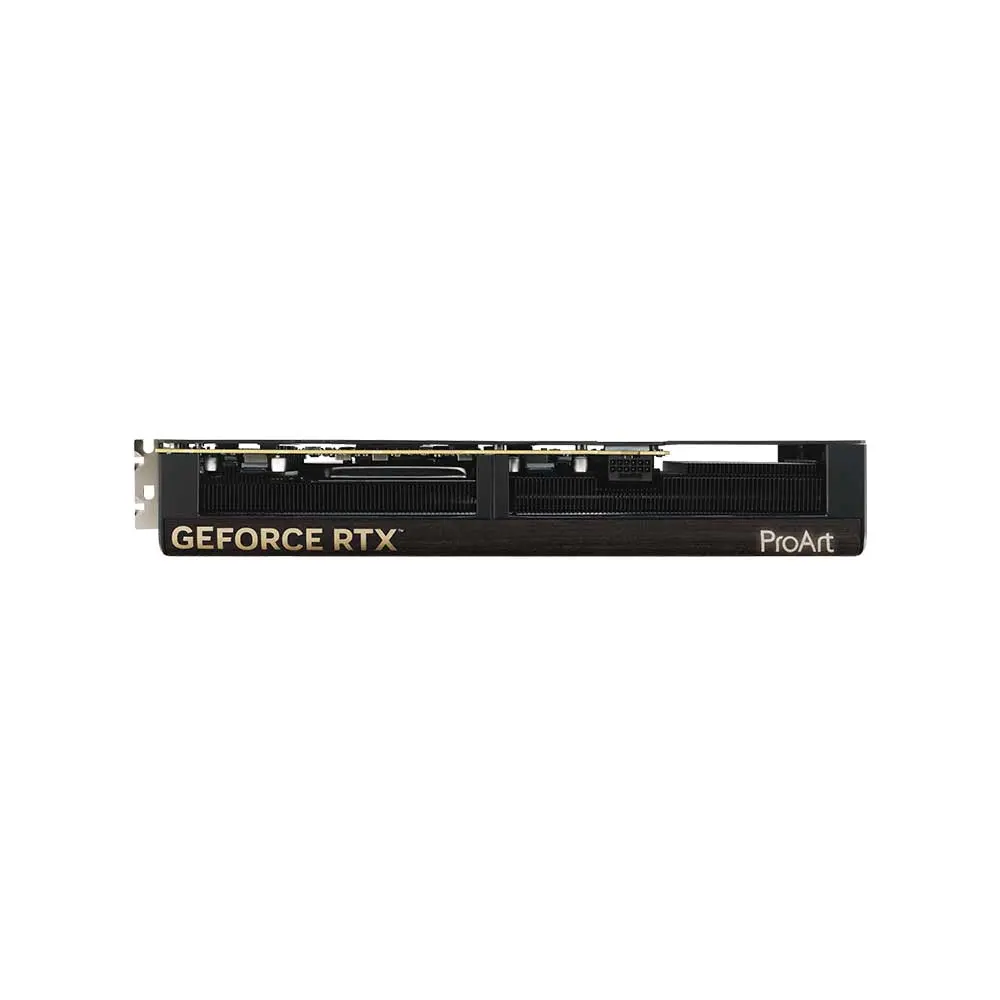

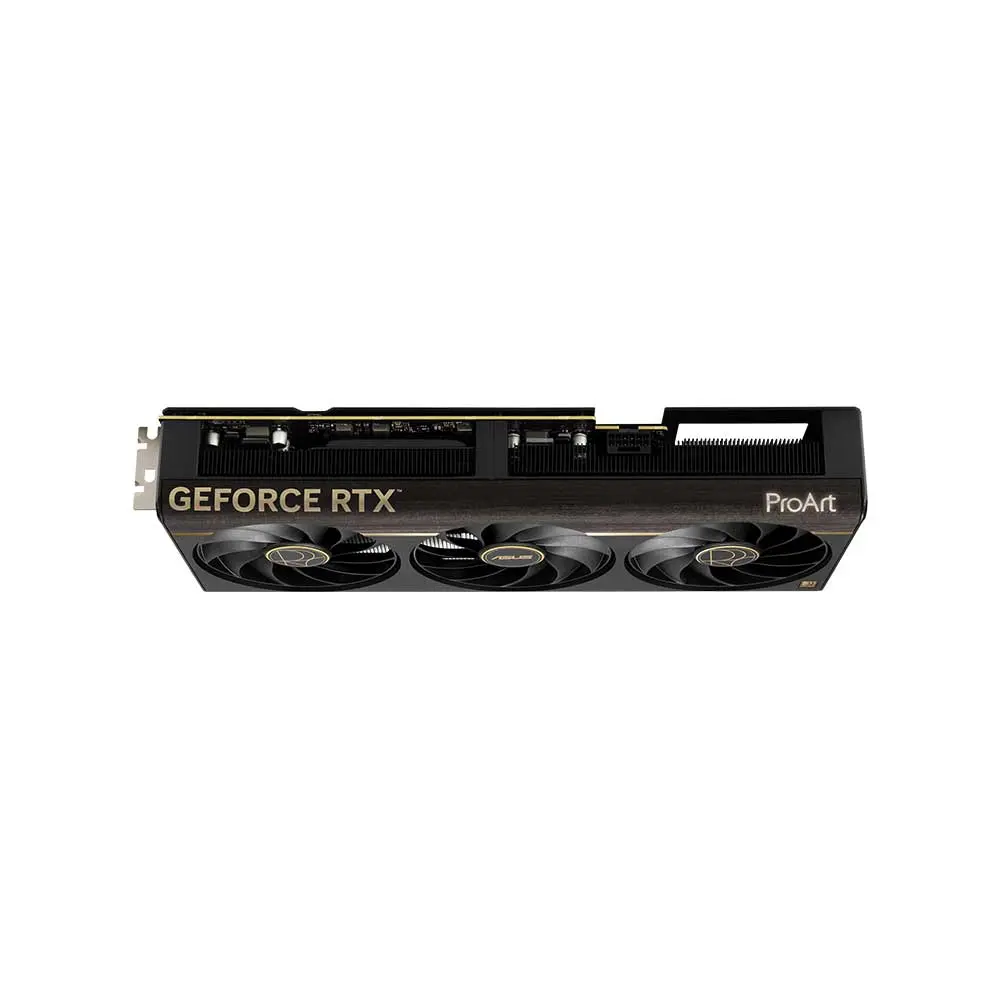

ASUS ProArt RTX 5080 16GB GDDR7 OC Edition Graphics Card
The ASUS ProArt RTX 5080 combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
| Model | PROART-RTX5080-O16G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5080 |
| AI Performance | 1801 TOPs |
| Bus Standard | PCI Express 5.0 |
| Open GL | Open GL 4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC mode: 2730 MHz Default mode: 2700 MHz (Boost Clock) |
| Cuda Core | 10752 |
| Memory Speed | 30 Gbps |
| Memory Interface | 256 Bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1b) Yes x 1 (USB Type-C) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x ProArt Graphics Card Holder 1 x ASUS Velcro Hook & Loop 1 x Thank you Card |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 304 x 126 x 50 mm 12 x 5 x 2 inch |
| Recommended PSU | 850 W |
| Power Connectors | 1 x 16-pin |
| Slot | 2.5 Slot |
| SFF Ready | Compatible |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
